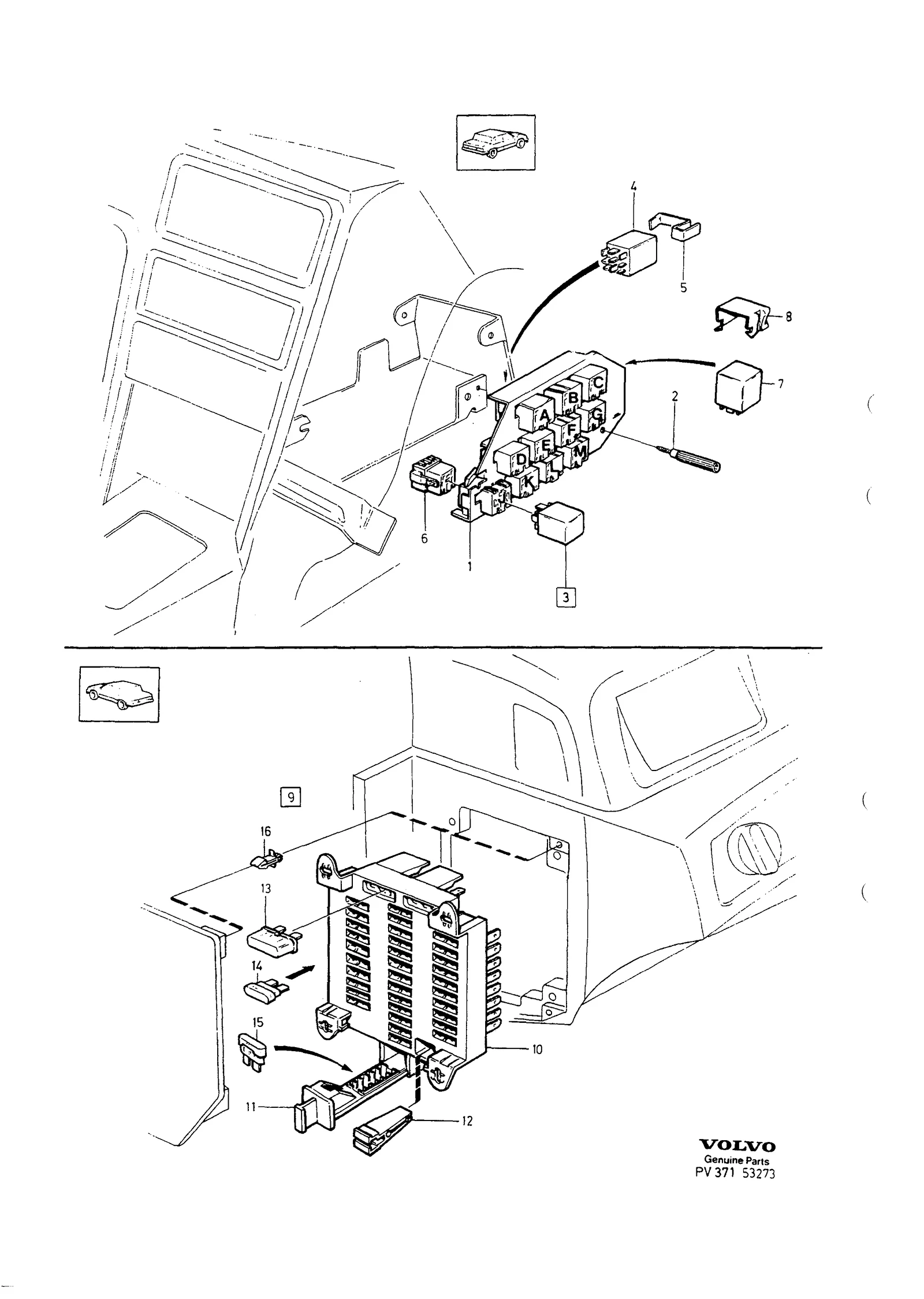

Sentralelektronikk, sikringsboks til Volvo 760 1988-

1. •Relay panel
2. •Screw
3. •Relay
4. •• Light relay "A+E"
5. •• Relay fuel injection "B"
6. •• Relay central locking "C" (1363443)
7. •• Relay Front fog lamp "D" (T) (1504952)
8. •• Relay Front fog lamp "D" (SA),(RC),(KWT),(UAE) (1504952)
9. •• Light relay Front fog lamp "D" (S),(N),(DK),(IS)
10. •• Light relay Front fog lamp "D" (J), (MAL), (THAI)
11. •• Light relay Front fog lamp "D" (I) (1362885)
12. •• Light relay Front fog lamp "D" (SF)
13. •• Light relay Front fog lamp "D" (SF),(GB),(B),(NL),(CH),(E),(P)
14. •• Relay Front fog lamp "D" (F)
15. •• Relay Front fog lamp "D" (F), (D), (A)
16. •• Light relay Front fog lamp "D" (S), (DK), (IS)
17. •• Light relay Front fog lamp "D" (AUS) (1362889)
18. •• Light relay Front fog lamp "D" (N),(AUS) (1362889)
19. •• Light relay Front fog lamp "D" (GB) (1362890)
20. •• Failure sensor yellow "F" (1362903)
21. •• Relay Overdrive "G" MAN.TRANS M46
22. 3)• Relay Overdrive AUTO.TRANS AW70/71 3)
23. 4)• Relay Overdrive "G" AW 70/71 4)
24. •• Relay Window lift Roof hatch "J" -1989
25. •• Relay relieve "J" 1990
26. •• Intermittent relay Rear window wiper "K" 5DRS
27. •• Intermittent relay Windscreen wiper "L" -1990 (3515279) (3523609)
28. •• Seat belt reminder "M"
29. •Relay temperature (J) (1367598)
30. •Clip
31. •Socket housing light brown Retainer Relay 9-POLE
32. •Relay (N) (1504952)
33. •Fusebox complete
34. •• Fuse box (1362319)
35. •• Box with lamp
36. •Fuse tool
37. •Automatic fuse 30 A
38. •Blade fuse 5 A
39. •Blade fuse 10 A
40. 5)Blade fuse 5) 15 A
41. 6)Blade fuse 6) 15 A
42. •Blade fuse 25 A
43. 5)Blade fuse 5) 30 A
44. 6)Blade fuse 6) 30A
45. •Blade fuse 15 A
46. •Blade fuse 30 A
47. •Clip SEE 88•1127

• 1363440 — Volvos originale artikkelnummer
• Alt. nr 264612 — erstatningsnummer
• 1) — Hva tallene betyr

Numrene nedenfor viser til artikkelnumrene i katalogen.
