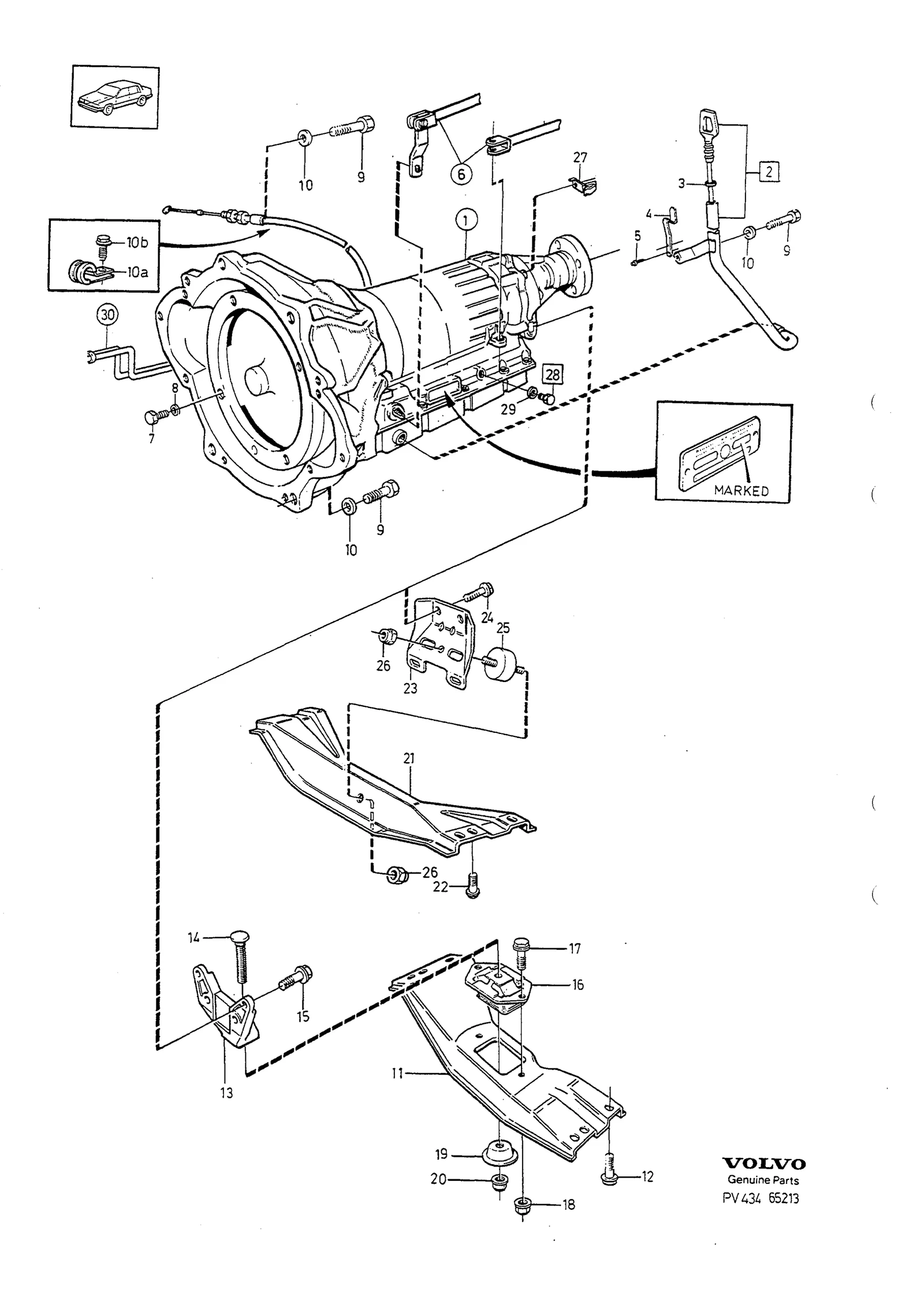

Automatgirkasse, girkasseoppheng til Volvo 940/960 1990-1996

1. –)Automatic gearbox •SEE 43 •925 / AW70, B200E TRANS MARKED 1208415
2. –)Automatic gearbox •SEE 43 •929 / AW70, B230FD 1993- TRANS MARKED 1208652
3. 1)Automatic gearbox •-1992 ••SEE 43 •925 •1993- ••SEE 43 •929 / AW70, B200F TRANS MARKED 1208659
4. –)Automatic gearbox •-1992 ••SEE 43 •935 •1993- ••SEE 43 •929 / AW71, B230F TRANS MARKED 1208682
5. 2)Automatic gearbox •-1991 ••SEE 43 •935 / AW71, B230FT/GT EXC (J), (AUS) TRANS MARKED 1208643
6. 3)Automatic gearbox •1992- ••SEE 43 •941 / AW71, B230FT/GT EXC (J), (AUS) TRANS MARKED 1208643
7. 4)Automatic gearbox •-1991 ••SEE 43 •935 / AW71, B230FT (J), (AUS), (T) TRANS MARKED 1208642
8. 5)Automatic gearbox •1992- ••SEE 43 •941 / AW71, B230FT (J), (AUS), (T) TRANS MARKED 1208642
9. 1)Automatic gearbox •SEE 43 •935 / AW71, B280F TRANS MARKED 1208532
10. 6)Automatic gearbox •SEE 43 •935 / AW71, B280F TRANS MARKED 1208533
11. 6)Automatic gearbox •SEE 43 •935 / AW71, B280E TRANS MARKED 1208534
12. 1)Automatic gearbox •SEE 43 •951 / AW72, B234F/G TRANS MARKED 1208666
13. 6)Automatic gearbox •SEE 43 •951 / AW72, B234F/G TRANS MARKED 1208667
14. 6)Automatic gearbox •SEE 43 •947 / AW71, B200FT EXC (J) TRANS MARKED 1208684
15. 1)Automatic gearbox •SEE 43 •947 / AW71, B200FT (J) TRANS MARKED 1208739
16. –)Automatic gearbox, exch / TRANS 1208415
17. –)Automatic gearbox, exch / TRANS 1208659
18. –)Automatic gearbox, exch / TRANS 1208652
19. –)Automatic gearbox, exch / TRANS 1208682
20. –)Automatic gearbox, exch / -1991. TRANS 1208643
21. –)Automatic gearbox, exch / 1992-. TRANS 1208643
22. –)Automatic gearbox, exch / -1991. TRANS 1208642
23. –)Automatic gearbox, exch / 1992-. TRANS 1208642
24. –)Automatic gearbox, exch / TRANS 1208532
25. –)Automatic gearbox, exch / TRANS 1208533
26. –)Automatic gearbox, exch / TRANS 1208534
27. –)Automatic gearbox, exch / TRANS 1208666
28. –)Automatic gearbox, exch / TRANS 1208667
29. –)Automatic gearbox, exch / TRANS 1208684
30. –)Dipstick tube / EXC AW72
31. –)Dipstick tube / AW72
32. –)• O-ring / (925054)
33. –)• Locking spring
34. –)• Blind rivet
35. –)Gearshift / -1992, L.H.D SEE 43 •1037 / -1992, R.H.D SEE 43 •1037 / 1993-, L.H.D SEE 43 •1041 / 1993-, R.H.D SEE 43 •1041
36. –)Hexagon screw
37. –)Spring washer
38. –)Hexagon screw / (955320) M10X40
39. –)Clamp / 1992-. B200/230
40. –)Flange screw / 1992-. B200/230
41. –)Member Med upphängningsdetaljer
42. –)• Gearbox member / EXC 4CYL (T) REPL 1 PCS 1378417-8, 1 PCS 1328900-4, 2PCS 946440-5.
43. –)• Hexagon screw
44. –)• Bracket
45. –)• Bracket / 1993-, (J), (AUS) B200/230 EXC TURBO
46. 7)• Bracket / TURBO
47. –)• Bracket / 1993-, EXC (J), (AUS) B200/230 EXC TURBO
48. –)•• Screw
49. –)• Flange screw
50. –)• Rubber cushion / REPL 1 1328900-4, 2 PCS 946440-5, 2 PCS 948645-7.
51. –)• Flange lock nut
52. –)• Stop washer
53. –)Member with mounting parts / 4CYL (T)
54. –)• Gearbox member
55. –)• Rubber cushion
56. –)Clamp Solenoid / 1993-, AW70/71
57. –)Plug
58. –)• O-ring
59. –)Gearbox cooling / 4CYL SEE 43 •1045 / 6CYL SEE 43 •1047

Ordliste — Volvos forkortelser

B230FD

2,3 l 4-cyl insprutning, lågtryck (940)

L.H.D

vänsterstyrd

R.H.D

högerstyrning

EXC

exklusive

TURBO

turbo

6CYL

bensinmotor 6 cylindrar

• 1208415 — Volvos originale artikkelnummer
• Alt. nr 264612 — erstatningsnummer
• 1) — Hva tallene betyr

Numrene nedenfor viser til artikkelnumrene i katalogen.
