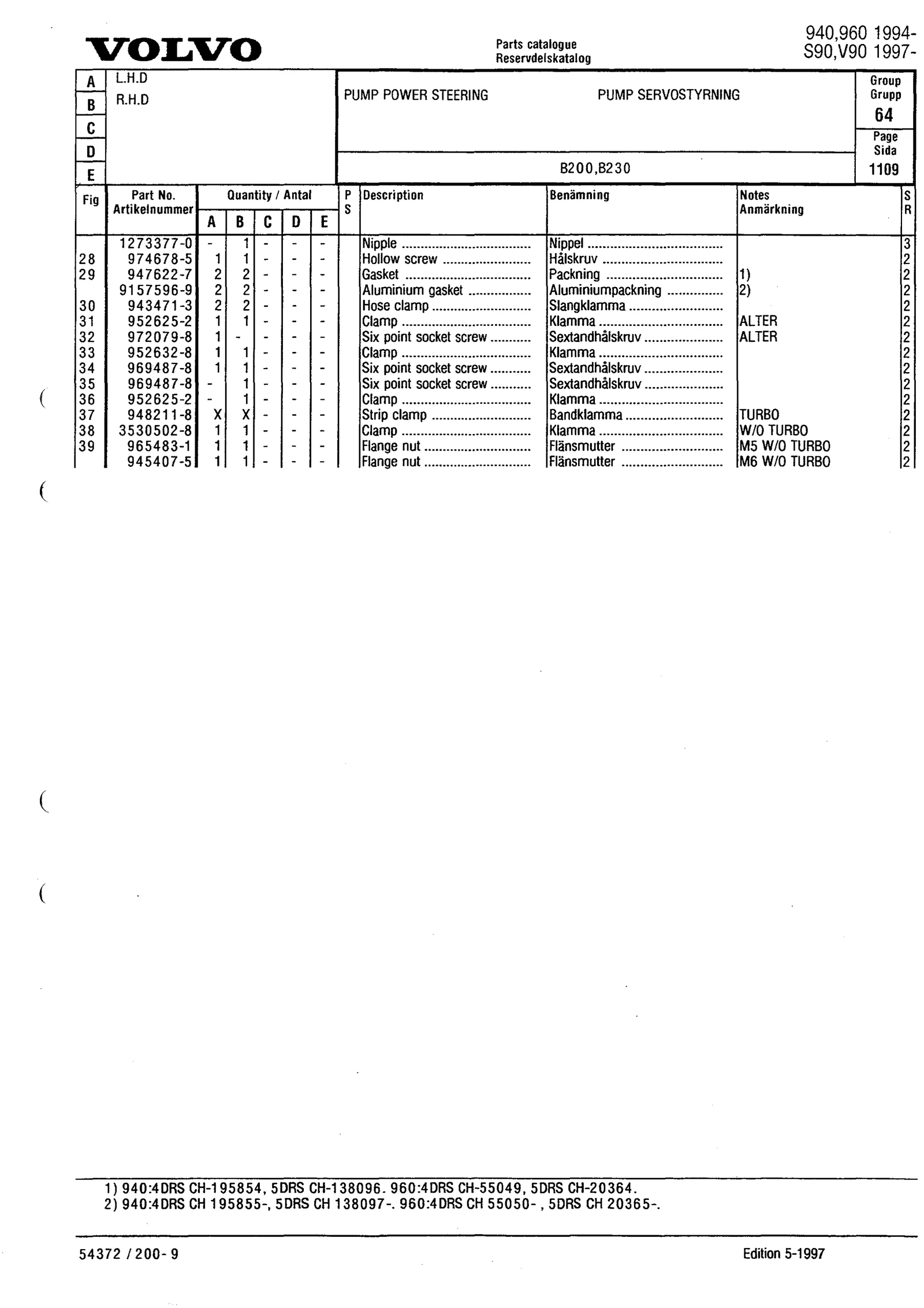

Pumpe servostyring til Volvo 940/960 1994- & S90/V90 1997-

1. •Steering gear
2. ••940 4DRS ••SEE 64•1097/A
3. ••940 5DRS ••SEE 64•1097/B
4. ••940 4DRS ••SEE 64•1097/C
5. ••940 5DRS ••SEE 64•1097/D
6. ••960 4DRS ••SEE 64•1101/C
7. ••960 5DRS ••SEE 64•1101/D
8. •Servo pump SEE 64•1121 4DRS CH -230996. 5DRS CH -184702
9. •Servo pump SEE 64•1121 4DRS CH 230997-. 5DRS CH 184703-
10. •Oil reservoir
11. ••Cover
12. •Bracket 940
13. •Bracket 960
14. •Flange screw 940
15. •Flange screw 960
16. •Suction hose
17. •Hose clamp
18. •Bracket
19. •Flange screw
20. •Attaching arm, front
21. •Attaching arm, rear
22. •Tensioning arm
23. ••Adjusting screw
24. ••Lock screw
25. •Flange lock nut
26. •Pulley
27. •V-belt servo pump-fan-crankshaft W/O TURBO
28. •V-belt servo pump-fan-crankshaft TURBO
29. •Pressure hose TRW
30. •Pressure hose KOYO 940 4DRS CH -174372. 940 5DRS CH -117421
31. •Pressure hose
32. •Hollow screw
33. 1)Gasket 1)
34. 2)Aluminium gasket 2)
35. •Return hose LG 780 mm
36. •Return hose LG 1020 mm
37. •Return connection ZF
38. •Return connection CAM,TRW
39. •Return connection KOYO 940 4DRS CH -174372. 940 5DRS CH -117421
40. •Nipple
41. •Clamp ALTER
42. •Six point socket screw ALTER
43. •Clamp
44. •Six point socket screw
45. •Strip clamp TURBO
46. •Clamp W/O TURBO
47. •Flange nut M5 W/O TURBO
48. •Flange nut M6 W/O TURBO

Ordliste — Volvos forkortelser

4DRS

4-dörrars personvagn

5DRS

5 -dörrars personvagn

LG

lengde

TURBO

turbo

• 1359652 — Volvos originale artikkelnummer
• 1) — Hva tallene betyr

Numrene nedenfor viser til artikkelnumrene i katalogen.
