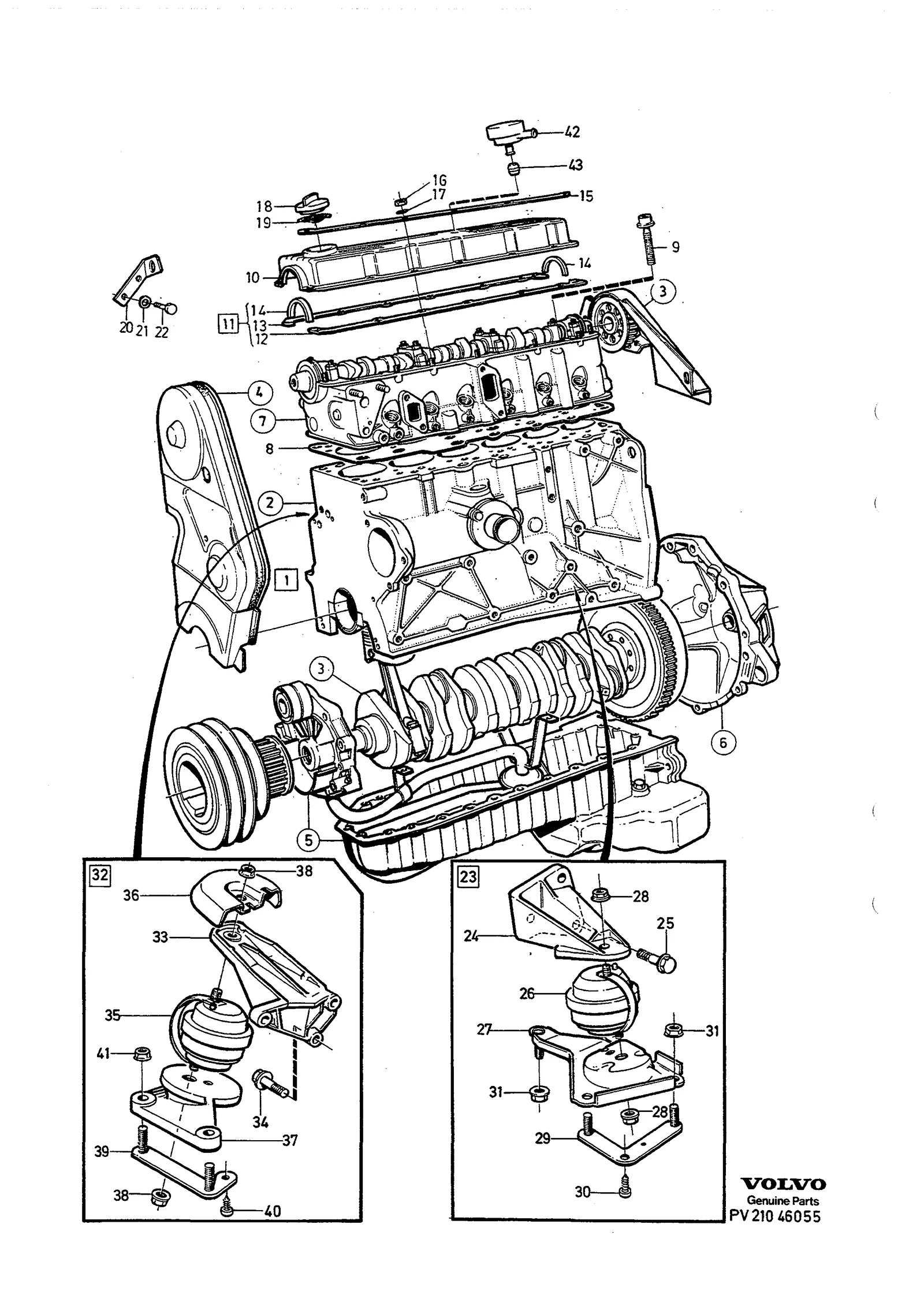

Motor med monteringsdetaljer til Volvo 740/760 · Volvo 740 1991-

1. •Cylinder block complete
2. •• Engine block SEE 21 • 139
3. •• Crank mechanism SEE 21 • 141
4. •• Belt transmission SEE 21 • 145
5. •• Lubricating system SEE 22 • 161
6. •Bell housing SEE 43 • 539
7. •Cylinder head SEE 21 • 135
8. •Gasket D24 EXC (S) THK 1.4mm (1328017)
9. •Gasket D24 EXC (S) THK 1.5mm (1328018)
10. •Gasket D24 EXC (S) THK 1.6mm (1328019)
11. •Gasket D24T EXC(S) THK 1.5mm (1328975)
12. •Gasket D24T EXC(S) THK 1.6mm (1328976)
13. •Gasket D24TIC EXC (S) (1389257) THK 1.4mm
14. •Gasket D24TIC EXC (S) (1389258) THK 1.5mm
15. •Gasket D24TIC EXC (S) (1389259) THK 1.6mm
16. •Gasket (S) THK 1.4mm (6842489)
17. •Gasket (S) THK 1.5mm (6842490)
18. •Gasket (S) THK 1.6mm (6842491)
19. •Flange screw
20. •Valve cover
21. •Gasket kit SEE 21 • 149
22. •• Gasket, l.h.
23. •• Gasket, r.h.
24. •• Seal
25. •Strip
26. •Nut
27. •Spring washer
28. •Filler cap
29. •Gasket
30. •Lifting eye, front
31. •Screw
32. •Engine mountings L.H
33. •• Engine anchorage, l.h.
34. •• Flange screw
35. •• Engine pad
36. •• Engine bracket
37. •• Flange lock nut
38. •• Screw plate
39. •• Six point socket screw (969473)
40. •Engine mountings R.H.
41. •• Engine anchorage, r.h.
42. •• Shield D24T, D24TIC
43. •Valve
44. •Rubber bushing
45. •Gasket kits SEE 21 • 149

Ordliste — Volvos forkortelser

THK

tjocklek

L.H

venstre

R.H

høyre

D24TIC

2,4 l 6-cyl turbodiesel intercooler (740/760/940)

• 9146007 — Volvos originale artikkelnummer
• Alt. nr 264612 — erstatningsnummer
• 1) — Hva tallene betyr

Numrene nedenfor viser til artikkelnumrene i katalogen.
