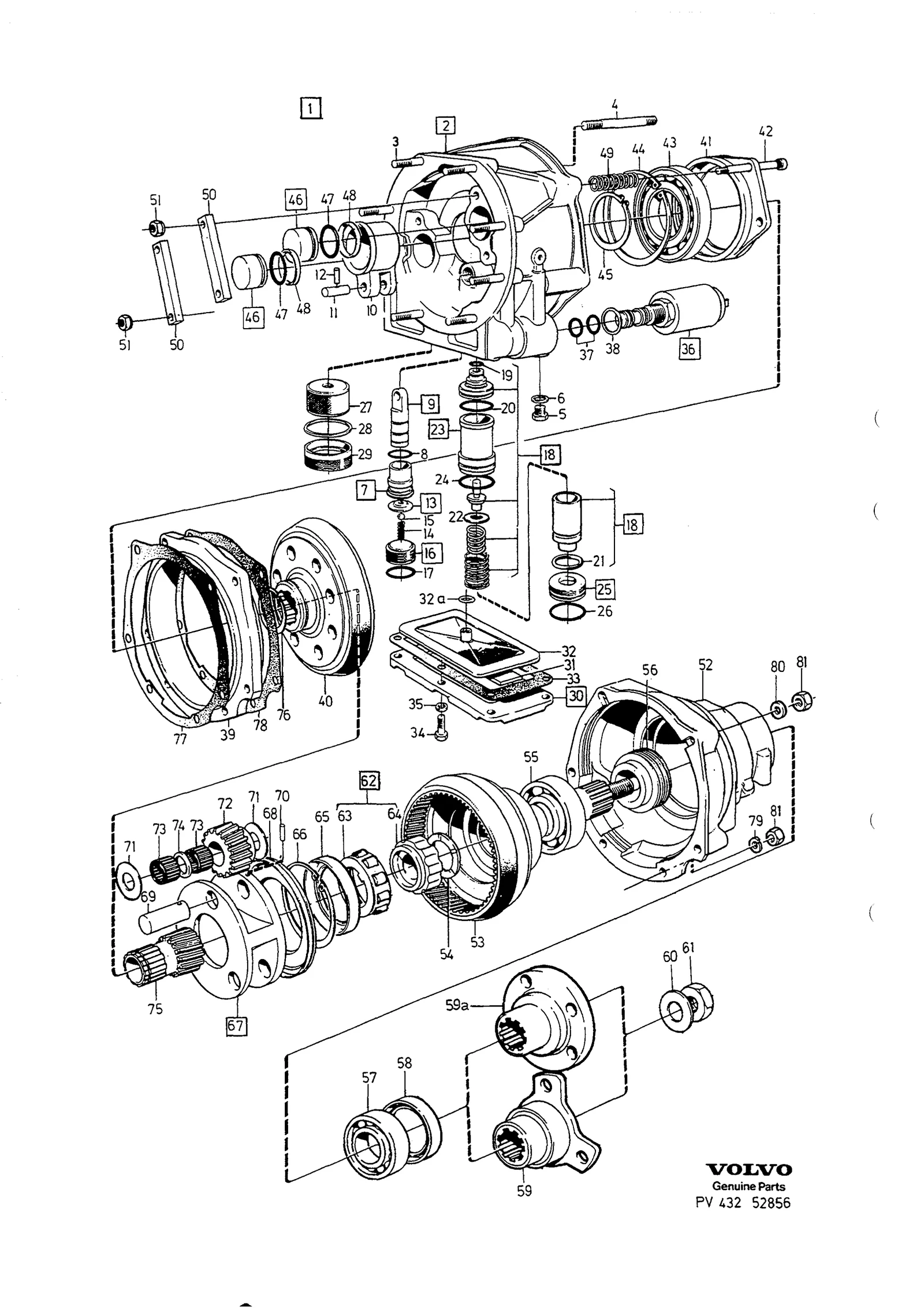

Overdrive til Volvo 780

1. –)Overdrive
2. –)Housing
3. –)Stud LG 37 mm
4. –)Stud LG 72 mm
5. –)Stud LG 80 mm
6. –)Plug
7. –)Gasket
8. –)Sleeve
9. –)O-ring
10. –)Piston
11. –)Slide
12. –)Pin
13. –)Lock pin
14. –)Seat
15. –)Spring
16. –)Ball O.DIA 5.56 mm
17. –)(3502652) Repair kit
18. –)Reduction valve
19. –)Washer pressure adjustment THK 0.05 mm
20. –)Washer pressure adjustment THK 0.13 mm
21. –)Washer pressure adjustment THK 0.25 mm
22. –)Washer pressure adjustment THK 0.76 mm
23. –)(380747) B204FT/GT Repair kit
24. –)(380747) EXC B204FT/GT Repair kit
25. –)Oil filter
26. –)Washer
27. –)Sump
28. –)Magnet
29. –)Filter
30. –)Sealing ring
31. –)Screw
32. –)Spring washer
33. –)Solenoid NO -2126
34. –)Solenoid NO 2127-
35. –)Solenoid
36. –)Sealing washer
37. –)(380910) Brake drum
38. –)Driven plate
39. –)Bearing carrier
40. –)Ball bearing
41. –)Retaining ring
42. –)Ring
43. –)REPL 4PCS 3502774-7 Spring kit
44. –)SEE 43-679 Spring
45. –)Pressure plate
46. –)Nut
47. –)REPL 1 PCS 1232501-5, 1 PCS 1220200-8, 1 PCS 948602-8, 1 PCS 955636-6. Housing, rear
48. –)Housing, rear
49. –)REPL 1 PCS 3549038-2, 1 PCS 3549040-8, 1PCS 11014-8. Ring gear
50. –)Ring gear
51. –)Thrust washer
52. –)Speedometer gear
53. –)Companion flange
54. –)SEE 43-679 Repair kit
55. –)Roller cage
56. –)Roller
57. –)Cone
58. –)Oil deflector
59. –)Planet gear
60. –)Oil collector
61. –)Stub
62. –)Gear
63. –)Needle bearing
64. –)Spacer washer
65. –)Sun gear

Ordliste — Volvos forkortelser

LG

lengde

O.DIA

diameter, yttre

THK

tjocklek

• 1208628 — Volvos originale artikkelnummer
• Alt. nr 264612 — erstatningsnummer
• 1) — Hva tallene betyr

Numrene nedenfor viser til artikkelnumrene i katalogen.
